Explosion Proof Lamp Ip65 Waterproof Factory 50w 100w 150w Led Explosion-Proof Light
Dettagli:
| Luogo di origine: | Cina continentale |
| Marca: | Finboard |
| Certificazione: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10pcs |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Confezione in scatola + bolla o su misura |
| Tempi di consegna: | 25-30days o confermare |
| Termini di pagamento: | T/T, Western Union |
| Capacità di alimentazione: | 5000pcs/mese |
|
Informazioni dettagliate |
|||
| Nome prodotto: | illuminazione protetta contro le esplosioni industriale | GUIDATO: | SMD 3030/2835 |
|---|---|---|---|
| Efficienza leggera: | 100-120LM/W. | Materiale: | Lenti PC in alluminio |
| Voltaggio: | AC85-265V | Garanzia: | 3/5 di anno |
| Segnali a prova di esplosione: | Exde IIC T6 Gb/Ex tD A21 IP65 T80°C | Impermeabile: | IP65 |
| Angolo trave: | 120 ° | Grado anticorrosivo: | Wf2 |
| Evidenziare: | IP65 waterproof explosion proof lamp,50W LED explosion proof light,factory explosion proof lighting 150W |
||
Descrizione di prodotto
Explosion Proof Lamp IP65 Waterproof Factory 50W 100W 150W LED Explosion-Proof Light
Product Description

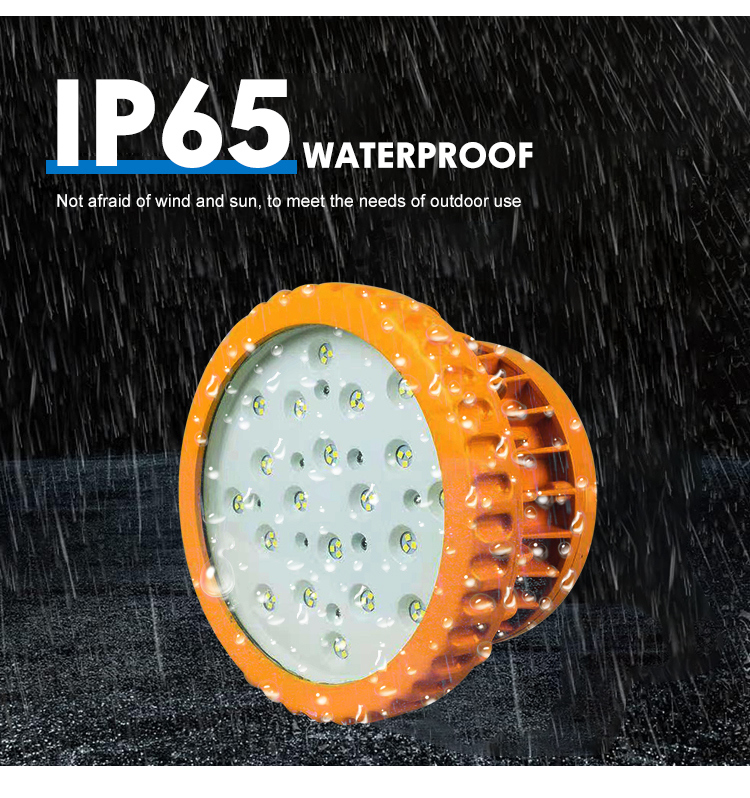

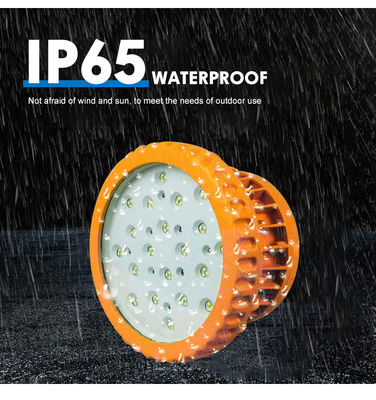

This series of LED Explosion Proof Lights is designed with an IP65 rating for effective waterproof and dustproof performance in harsh environments. Certified with Exd IIC T6 explosion-proof standard, it ensures safe operation in hazardous locations.
Key Features
- Aluminum housing heatsink, PC cover, lens 60°/90°/120° (customizable)
- C-class explosion-proof structure, IP66 protection grade
- Excellent explosion-proof and impact-resistant characteristics
- High borosilicate explosion-proof glass, impact-resistant
- 3-year or 5-year quality warranty options available
Technical Specifications
| Specification | Details |
|---|---|
| Surface color | Yellow |
| Power options | 30W, 40W, 50W, 60W, 70W, 80W, 100W, 120W, 150W, 200W |
| Beam Angle | 60°, 90°, 120° |
| IP Rating | IP66 |
| Power Factor (PF) | ≥0.97 |
| CRI (Ra>) | 80 |
| Lamp Luminous Efficiency (lm/w) | 130 |
| Working Temperature | -45℃ to 80℃ |
| Material | Aluminium alloy explosion-proof cover |
| LED chip | LUMILEDS |
| Warranty | 5 years |
| Input Voltage | AC85-265V |
| Color Temperature | 2700-6500K |
| Frequency Range | 50-60HZ |
Advanced Features
- The explosion proof LED light source cavity is made up of multiple LED beads with long service life and high luminous efficiency
- Nano-reflective cups improve luminaire efficiency with higher luminous efficiency
- Industrial LED light explosion proof exposed fasteners are all stainless steel screws, highly resistant to corrosion
- Optional emergency devices available, automatically switching to emergency lighting during power failure
- Tempered glass available in frosted or clear versions (flat and convex options)
Installation Options
Multiple installation methods available including ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted, bent-pole-mounted and other options.
Applications
Designed for hazardous locations where destruction, damage and explosion may occur. Ideal for:
- Refineries and fuel storage facilities
- Oil exploration and refining operations
- Chemical industry plants
- Military and other dangerous environments
- Offshore oil platforms and oil tankers
- Remote locations with hazardous conditions
