300W Explosion Proof LED Flood Light ATEX Zone 39000lm IP66 Die-Cast Aluminum Lighting
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | Fins board, BOCAQ |
| Certificazione: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Numero di modello: | EPFL-300W |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10 pezzi |
|---|---|
| Prezzo: | USD 380-520 / Piece |
| Imballaggi particolari: | Confezione in scatola + bolla o su misura |
| Tempi di consegna: | 10-15 giorni o conferma |
| Termini di pagamento: | T/T, Unione Occidentale |
| Capacità di alimentazione: | 5000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Energia: | 300 W | Flusso luminoso: | 39000lm |
|---|---|---|---|
| Efficacia: | 130 lm/W | Temperatura del colore: | 5000k |
| Angolo del fascio: | 120° | Tensione in ingresso: | CA 100-277 V |
| Circuito integrato principale: | BridgeluxSMD3030 | CRI: | ≥70 |
| Fattore di potenza: | ≥0,95 | Grado di protezione IP: | IP66 |
| Valutazione di IK: | IK08 | Materiale dell'alloggiamento: | Alluminio pressofuso ADC12 |
| Materiale delle lenti: | Vetro temperato 5mm | Temperatura operativa: | Da -40°C a +60°C |
| Opzioni di montaggio: | Staffa regolabile, montaggio su palo, montaggio a soffitto | Certificazione: | ATEX II 2G Ex d IIC T6 Gb / Ex tb IIIC T85°C Db |
| Durata: | ≥50.000 Ore L70 | Garanzia: | 5 anni |
| Evidenziare: | 300W explosion proof LED flood light,ATEX Zone LED flood lighting,IP66 die-cast aluminum flood light |
||
Descrizione di prodotto

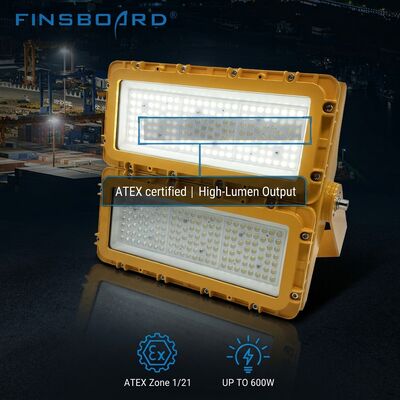

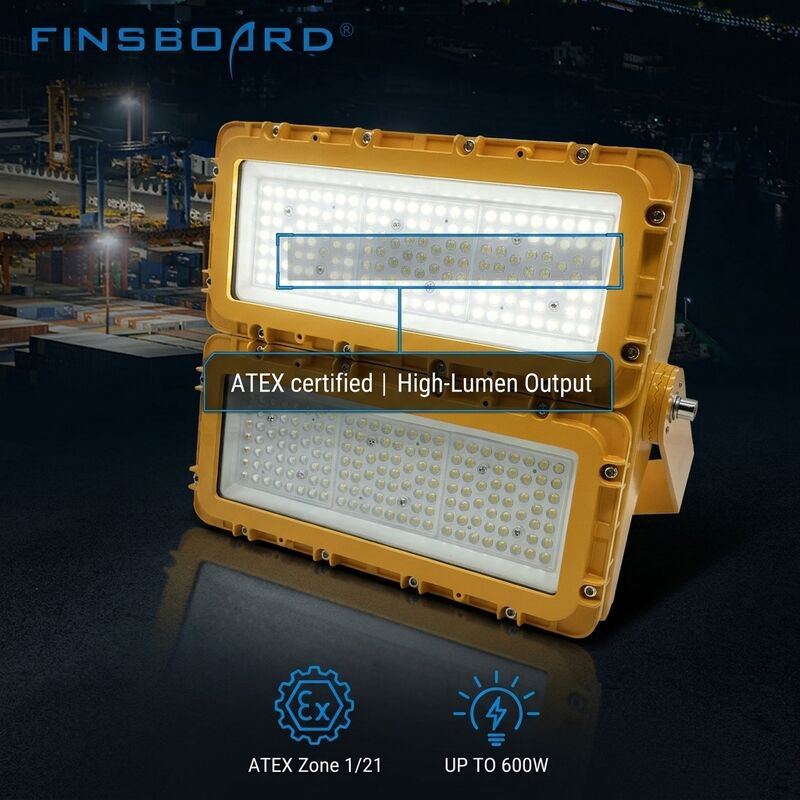

300W Explosion Proof LED Flood Light ATEX Zone 39000lm IP66 Die-Cast Aluminum Lighting
The EPFL-300W-Z1 is a high-power 300W explosion proof LED flood light engineered for demanding industrial environments requiring ATEX Zone 1 and Zone 2 certification. With an impressive 39000lm luminous output and 130lm/W efficacy, this floodlight delivers exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 300W High Power Output - 39000lm total luminous flux with 130lm/W efficacy, outperforming traditional HID equivalents
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb / Ex tb IIIC T85°C Db for Zone 1, Zone 2 gas and Zone 21, Zone 22 dust atmospheres
- Robust Die-Cast Aluminum Housing - ADC12 aluminum alloy with anti-corrosion powder coating for long-term outdoor durability
- IP66 Weatherproof - Fully sealed against dust ingress and powerful water jets, suitable for the harshest environments
- 5mm Tempered Glass Lens - High-transmittance glass with IK08 impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K cool white light with CRI ≥70
- Wide 120° Beam Angle - Optimal light distribution for large-area coverage in refineries, chemical plants, and offshore platforms
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
Applications
Ideal for ATEX Zone 1 and Zone 2 classified areas including:
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
- Grain silos and flour mills (dust explosive atmospheres)
- Coal mining preparation plants
Technical Specifications
| Model Number | EPFL-300W-Z1 |
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| CRI | ≥70 |
| Power Factor | ≥0.95 |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb / Ex tb IIIC T85°C Db |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Why Choose ECER 300W Explosion Proof Flood Light?
As a leading manufacturer of hazardous area lighting solutions, ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each EPFL-300W-Z1 unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification. Our 5-year warranty reflects confidence in the long-term reliability of our 300W explosion proof flood light series.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
