300W Explosion Proof LED Flood Light ATEX Zone 21 Zone 22 Dust Proof Anti-Static 39000lm IP66 Aluminum Lighting
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | Fins board, BOCAQ |
| Certificazione: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Numero di modello: | EPFL-300W-POLVERE |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10 pezzi |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Confezione in scatola + bolla o su misura |
| Tempi di consegna: | 10-15 giorni o conferma |
| Termini di pagamento: | T/T, Unione Occidentale |
| Capacità di alimentazione: | 5000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Energia: | 300 W | Flusso luminoso: | 39000lm |
|---|---|---|---|
| Efficacia: | 130 lm/W | Temperatura del colore: | 5000K (bianco fresco) |
| Angolo del fascio: | 120° | Tensione in ingresso: | CA 100-277 V 50/60 Hz |
| Circuito integrato principale: | BridgeluxSMD3030 | Grado di protezione IP: | IP66 |
| Materiale dell'alloggiamento: | ADC12 in alluminio pressofuso con rivestimento antistatico | Materiale delle lenti: | Vetro temperato 5mm |
| Temperatura operativa: | Da -40°C a +60°C | Certificazione: | ATEX II 2D Ex tb IIIC T85°C Db |
| Durata: | ≥50.000 Ore L70 | Garanzia: | 5 anni |
| Evidenziare: | 300W Dust Explosion Proof,ATEX Zone 21 LED Light,Anti-Static Hazardous Lighting |
||
Descrizione di prodotto
300W Explosion Proof LED Flood Light ATEX Zone 21 Zone 22 Dust Proof Anti-Static 39000lm IP66 Aluminum Lighting
300W Explosion Proof LED Flood Light - ATEX Hazardous Area Lighting

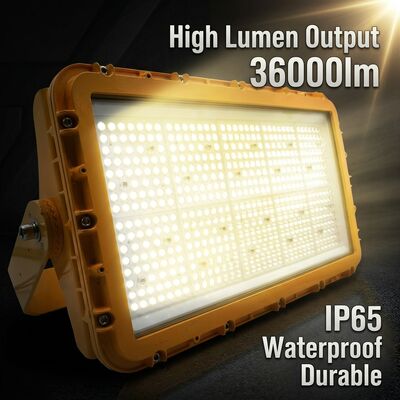

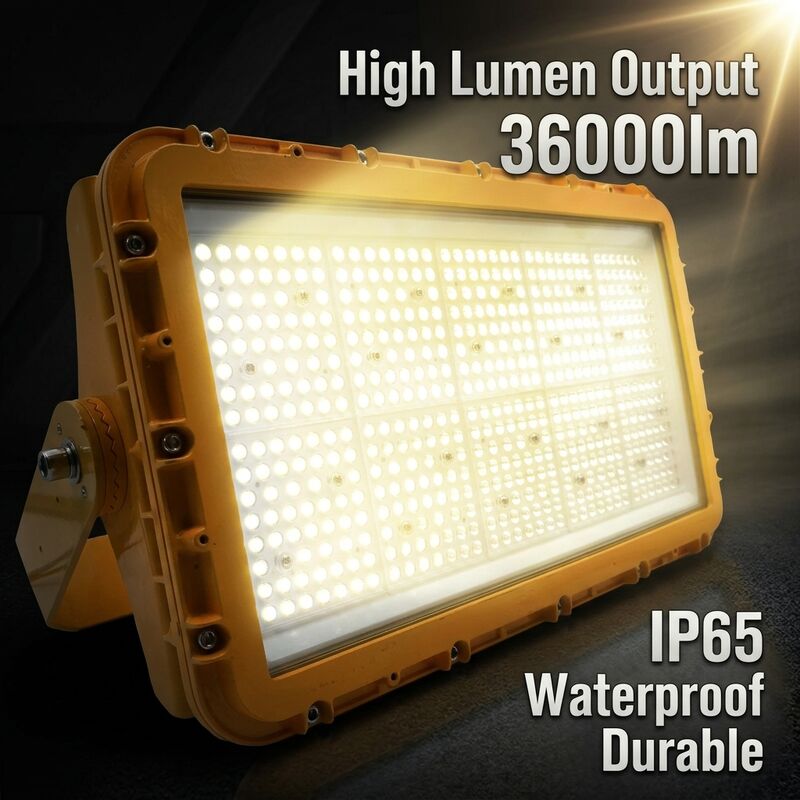

The EPFL-300W-DUST is a 300W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 300W High Power Output - 39000lm total luminous flux with 130lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2D Ex tb IIIC T85°C Db for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - Die-cast aluminum ADC12 with anti-static coating and corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Dust Ignition Protection - ATEX II 2D Ex tb IIIC T85°C Db certified for combustible dust atmospheres, suitable for Zone 21 and Zone 22 areas
- Anti-Static Powder Coating - Surface resistivity below 10⁹ Ω, preventing electrostatic discharge that could ignite airborne dust clouds
Applications
Ideal for hazardous classified areas including:
- Grain silos, flour mills, coal processing, and combustible dust environments
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-DUST |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with Anti-Static Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2D Ex tb IIIC T85°C Db |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
