300W LED Explosion Proof Flood Light 60° Guardrail Mount Walkway ATEX IIB T6 IP65
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | ECER |
| Certificazione: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| Numero di modello: | RFEPL8280-300W-GR |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10 pezzi |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Confezione in scatola + bolla o su misura |
| Tempi di consegna: | 10-15 giorni o conferma |
| Termini di pagamento: | T/T, Unione Occidentale |
| Capacità di alimentazione: | 5000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Energia: | 300 W | Efficienza luminosa: | 100-120LM/W. |
|---|---|---|---|
| Circuito integrato principale: | LUMILEDS SMD (LM-80) | Angolo del fascio: | 60° |
| Tensione in ingresso: | CA 100-277 V | Grado di protezione IP: | IP65 |
| CRI: | ≥80 | Fattore di potenza: | ≥0,95 |
| Materiale: | Alumini + vetro temperato | Marchio antideflagrante: | Ex db mb IIB T6 - IP65 - WF2 |
| protezione contro i fulmini: | 6KV | Certificazione: | ATEX, CE, ROHS, CCC |
| Tutta la vita: | 50.000 ore | Temperatura operativa: | Da -40°C a +60°C |
| Test di spruzzatura salina: | 500 ore (acciaio inossidabile) | ||
| Evidenziare: | 300W explosion proof LED flood light,ATEX IIB T6 explosion proof light,IP65 guardrail mount walkway light |
||
Descrizione di prodotto

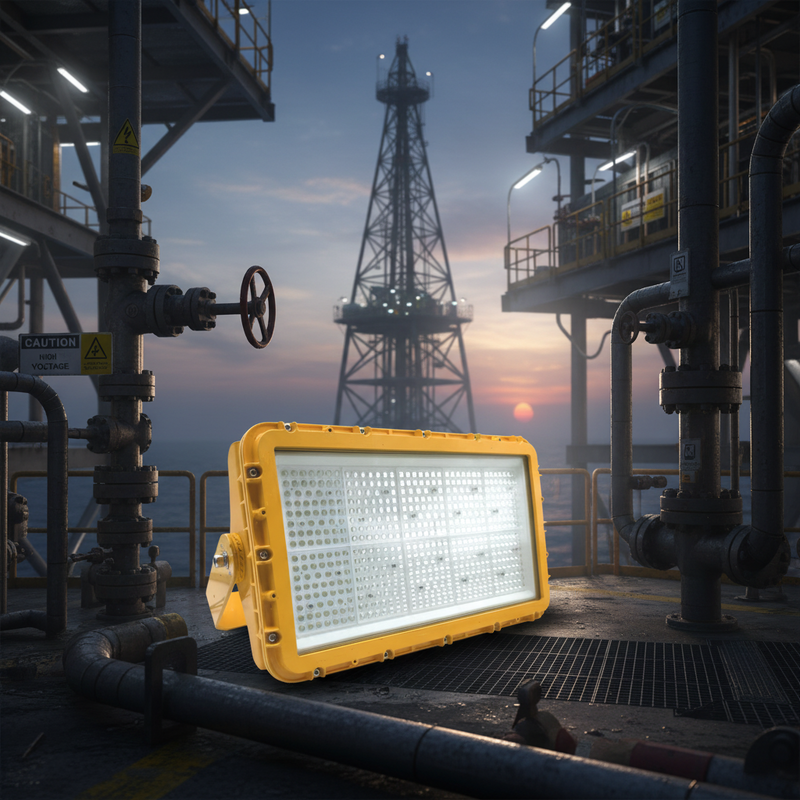

300W LED Explosion Proof Flood Light with Guardrail Mount
The RFEPL8280-300W-GR is a high-performance 300W LED explosion proof flood light featuring LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6
- 60° Beam Configuration - Medium beam with guardrail mount optimized for specific application requirements
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations
- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
- Guardrail-Clamp Mounting - Quick-attach bracket system for walkways and catwalks without drilling or welding
- IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical systems
6-in-1 Versatile Mounting
The RFEPL8280 series supports all standard mounting configurations:
- Ceiling mount
- Boom mount
- Bracket mount
- Wall mount
- Flange mount
- Guardrail mount
Applications
Engineered for walkways, staircases, inspection corridors, and catwalk areas in hazardous process plants:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and processing facilities
- Electric power generation and distribution stations
- Military and defense hazardous installations
- Combustible dust environments (Zone 21, Zone 22)
- Emergency and normal lighting in classified areas
Technical Specifications
| Model Number | RFEPL8280-300W-GR |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 60° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
