50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
Dettagli:
| Luogo di origine: | Cina |
| Marca: | RFEPL |
| Certificazione: | CE, ROHS, CCC, ATEX |
| Numero di modello: | RFEPL8280-300W-MB |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | USD 309-599/Piece |
| Imballaggi particolari: | K=K Cartone per esportazione con protezione interna in schiuma EPE |
| Tempi di consegna: | 15-25 giorni lavorativi |
| Termini di pagamento: | T/T,L/C,Western Union |
| Capacità di alimentazione: | 5000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Energia: | 300 W | Efficacia luminosa: | 100-120 lm/w |
|---|---|---|---|
| Marchio chip a LED: | Lumilider | Certificazione LED: | LM-80 |
| Tensione in ingresso: | AC100-277V | Fattore di potenza: | ≥0,95 |
| Certificazioni: | CE, ROHS, CCC, ATEX | Norma antideflagrante: | Ex db mb IIb T6 |
| Protezione dall'ingresso: | IP65 | Protezione dagli agenti atmosferici: | WF2 |
| Protezione contro le sovratensioni: | 6KV | Indice di resa cromatica: | CRI≥80 |
| Materiale dell'alloggiamento: | Alumini + vetro temperato | Opzioni dell'angolo d'apertura: | 30°/60°/90° (selezionabile) |
| Specifiche del cavo: | 1,0 mm² | Finitura superficiale: | Verniciatura Giallo/Grigio |
| Durata di vita: | 50.000 ore (L90) | Temperatura operativa: | Da -40°C a +60°C |
| Umidità operativa: | Dal 10% al 90% di RH | ||
| Evidenziare: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
Descrizione di prodotto

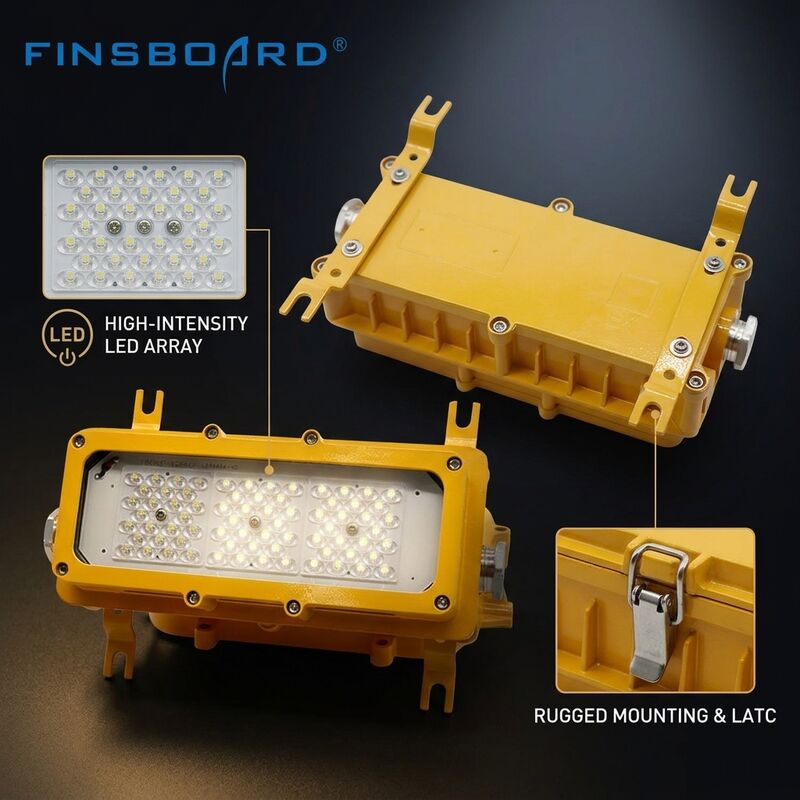

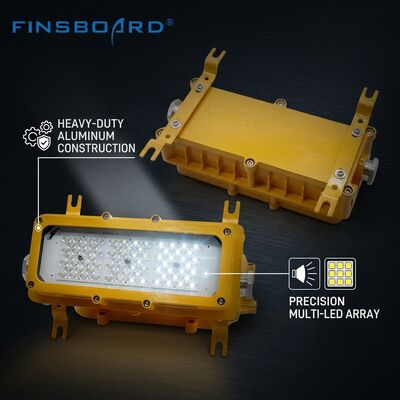

50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
