300W LED Explosion Proof Flood Light with 90° Wide Flood Beam and ATEX IIB T6 Certification
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | Fins board, BOCAQ |
| Certificazione: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| Numero di modello: | RFEPL8280-300W-WF90 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10 pezzi |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Confezione in scatola + bolla o su misura |
| Tempi di consegna: | 10-15 giorni o conferma |
| Termini di pagamento: | T/T, Unione Occidentale |
| Capacità di alimentazione: | 5000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Energia: | 300 W | Efficienza luminosa: | 100-120LM/W. |
|---|---|---|---|
| Circuito integrato principale: | LUMILEDS SMD (LM-80) | Angolo del fascio: | 90° |
| Tensione in ingresso: | CA 100-277 V | Grado di protezione IP: | IP65 |
| CRI: | ≥80 | Fattore di potenza: | ≥0,95 |
| Materiale: | Alumini + vetro temperato | Marchio antideflagrante: | Ex db mb IIB T6 - IP65 - WF2 |
| protezione contro i fulmini: | 6KV | Certificazione: | ATEX, CE, ROHS, CCC |
| Tutta la vita: | 50.000 ore | Temperatura operativa: | Da -40°C a +60°C |
| Test di spruzzatura salina: | 500 ore (acciaio inossidabile) | ||
| Evidenziare: | 300W Wide Beam Ex Light,90 Degree ATEX Floodlight,LUMILEDS Area Hazardous Lighting |
||
Descrizione di prodotto

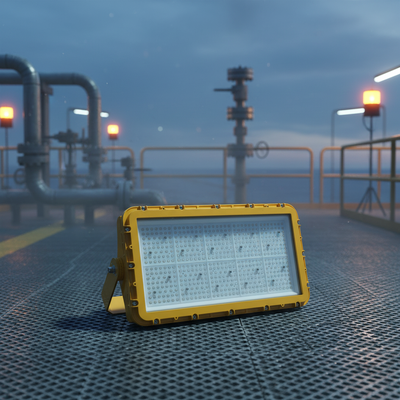

300W LED Explosion Proof Flood Light 90° Wide Flood Loading Zone ATEX IIB T6 IP65
Product Overview
The RFEPL8280-300W-WF90 is a 300W LED explosion proof flood light from the RFEPL8280 series, featuring Wide 90° flood beam with LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering in hazardous environments
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6, Zone 1/Zone 2 gas and Zone 21/Zone 22 dust
- 90° Beam Configuration - Wide 90° flood beam optimized for the specific application requirements
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning in any installation scenario
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate ensuring reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations in lightning-prone regions
- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
- 90° Wide Flood Coverage - Maximum area illumination for loading bays, marshalling yards, and open hazardous process areas requiring uniform light distribution
- IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant for harsh industrial atmospheres
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical distribution systems
6-in-1 Versatile Mounting
The RFEPL8280 series supports all standard mounting configurations:
- Ceiling mount
- Boom mount
- Bracket mount
- Wall mount
- Flange mount
- Guardrail mount
Applications
Engineered for Loading and unloading areas, parking yards, and large open hazardous zones:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and processing facilities
- Electric power generation and distribution stations
- Militar.y and defense hazardous installations
- Combustible dust environments (Zone 21, Zone 22)
- Emergency and normal lighting in classified areas
Technical Specifications
| Model Number | RFEPL8280-300W-WF90 |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 90° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
